TomCat G15 3520-980KV Motor w/ Skylord 40A ESC Combo Set

This power combo features the Skylord 40A ESC 5V/5A BEC and TomCat TC-G-3520-KV980 (G15) motor, delivering robust power, precise control, and rapid response. Its advanced design ensures superior performance and innovative technology for an enhanced RC experience.

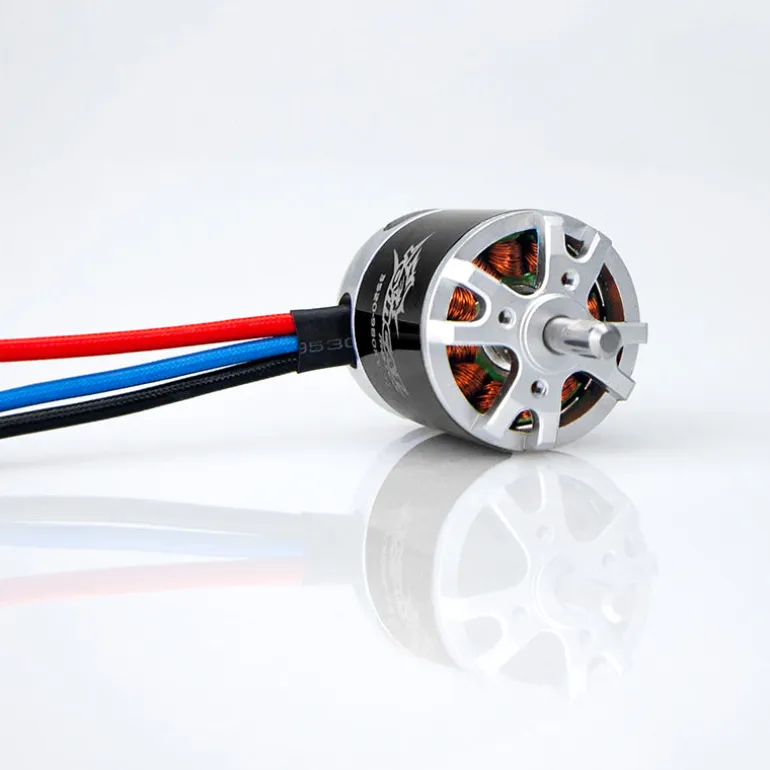

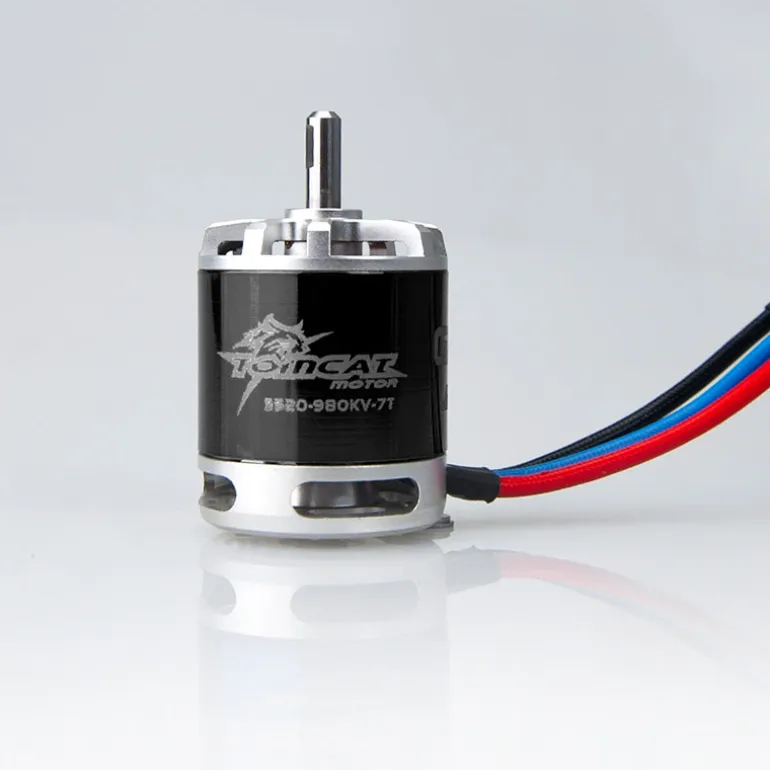

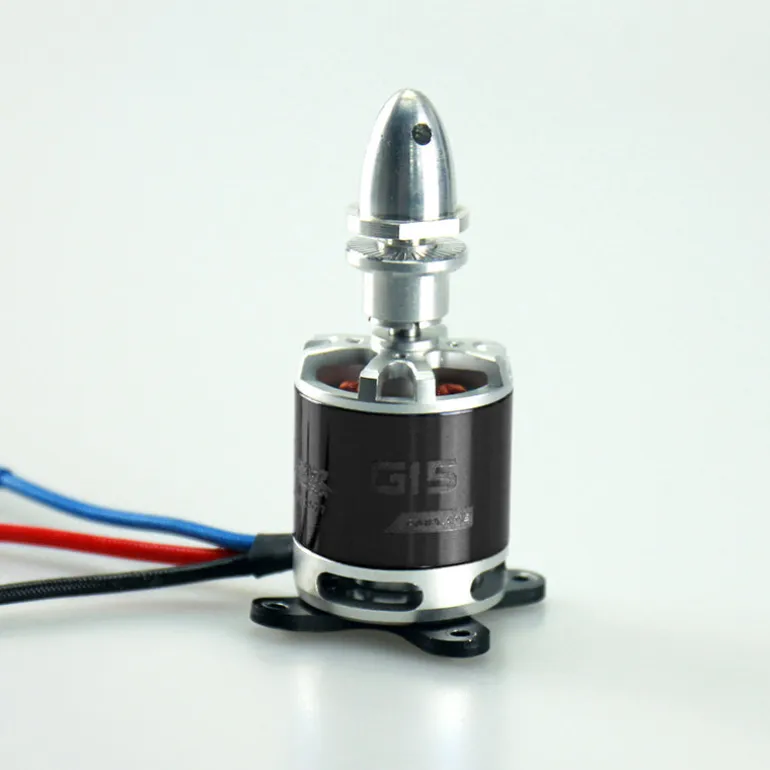

The TomCat G15 3520-980KV Outrunner Brushless Motor is an efficient and reliable replacement for a 15 glow engine. Suitable for 3-4 cell LiPo batteries, pair it with a 40 Amp ESC. It provides 900-1200g of thrust on 10″-13″ props with 3 cells, and 1200-2000g with 4 cells. Rated at 440 Watts max, it has a suggested max amp draw of 32 Amps (43 Amps burst).

This power combo set includes:

• Skylord 40A ESC (with 5V/5A BEC) x1
• TomCat Brushless Motor G15 x1

TomCat G Series Balsa EP Planes Brushless Motor Features:

• High-Strength Aluminum Alloy Casing: Enhances impact resistance.
• Wear-Proof Bearing: Ensures smooth, high-speed rotation and longevity.
• Heat-Resistant Magnet Wire: 240° resistant, vacuum impregnated for better heat conduction and longer service life.
• High Conductivity Silicon Steel: Made in Japan, boosts motor efficiency.
• N45H Magnets: High torque output, resistant to demagnetization at high temperatures.
• Optimized Heat Dissipation: Innovative design for efficient cooling and consistent performance.
• Dynamic Balancing: Reduces vibration and noise, ensures stable high-speed operation.
• Versatile Accessories: Includes 75cm extension cord and 10cm assembled wire for flexible connections.
• Enhanced Compatibility: Pairs excellently with Skylord series ESC, offering outstanding performance in Balsa EP airplanes.

TomCat G15 Motor Specifications:

• Type: TC-G-3520-KV980 (G15)
• KV(rpms per volt):980
• No load current: 2.2 A @10V
• Resistance: 0.033 ohms
• Watts: up to 440
• Continuous Current: 32A
• Max Burst Current: 43A,10seconds
• Cells: 3–4 S Li-Po (3520-7T 980KV 3-4 Cell Lipo)
• Recommended Props: 10×6 to 13×6.5
• Slots,Poles: 12,14
• Weight: 5.1 oz (145g)
• Motor Outer Dia: 35mm
• Shaft Dia: 5mm
• Brushless ESC: 50A

Skylord Electronic Speed Controller (ESC) Features:

• The ESC’s microprocessor is powered by a separate voltage regulator IC for enhanced anti-jamming, reducing the risk of loss of control.
• Throttle range is configurable, compatible with most transmitters, providing smooth, accurate speed control and excellent throttle linearity.
• Maximum motor speeds: 210,000 RPM (2 poles), 70,000 RPM (6 poles), 35,000 RPM (12 poles).
• Three start modes: Normal (fixed-wing), Soft, and Super-soft (helicopters).
• Comprehensive protection features: low voltage, over-heat, over-load, and throttle signal loss, extending ESC lifespan.
• Selectable timing supports both aircraft and disc-type motors.
• Multiple programmable options to suit various needs.
• Optional 3-in-1 programming card offers an intuitive, compact interface for easy ESC programming.

Please click here for TomCat Skylord ESC User Manual.
