TomCat G46 5020-680KV Motor w/ Skylord 50A ESC Combo Set

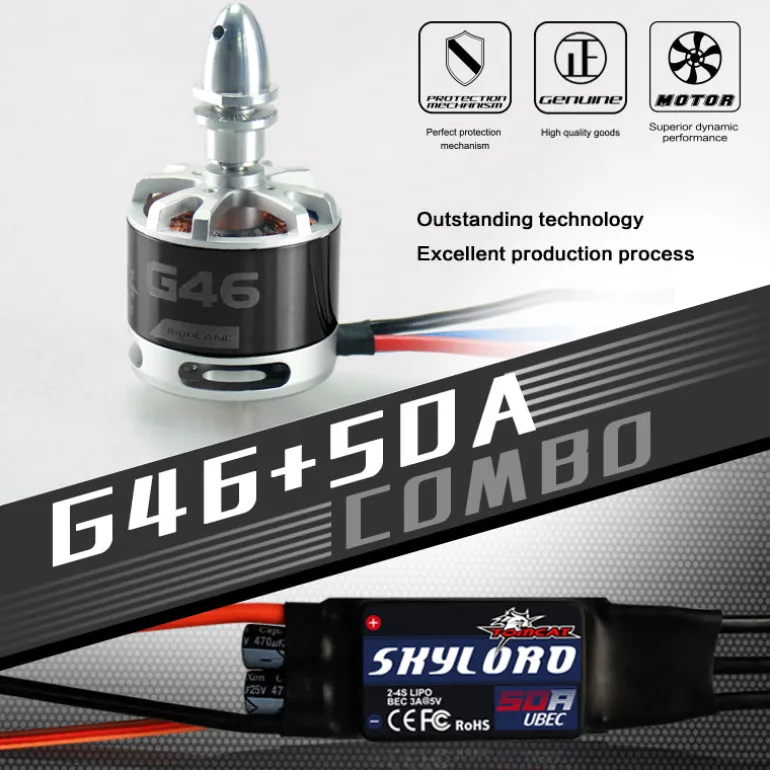

This power combo features the Skylord 50A ESC 5V/5A BEC and TomCat TC-G-5020-KV680 (G46) brushless motor, delivering robust power, precise control, and rapid response. Its advanced design ensures superior performance and innovative technology for an enhanced RC experience.

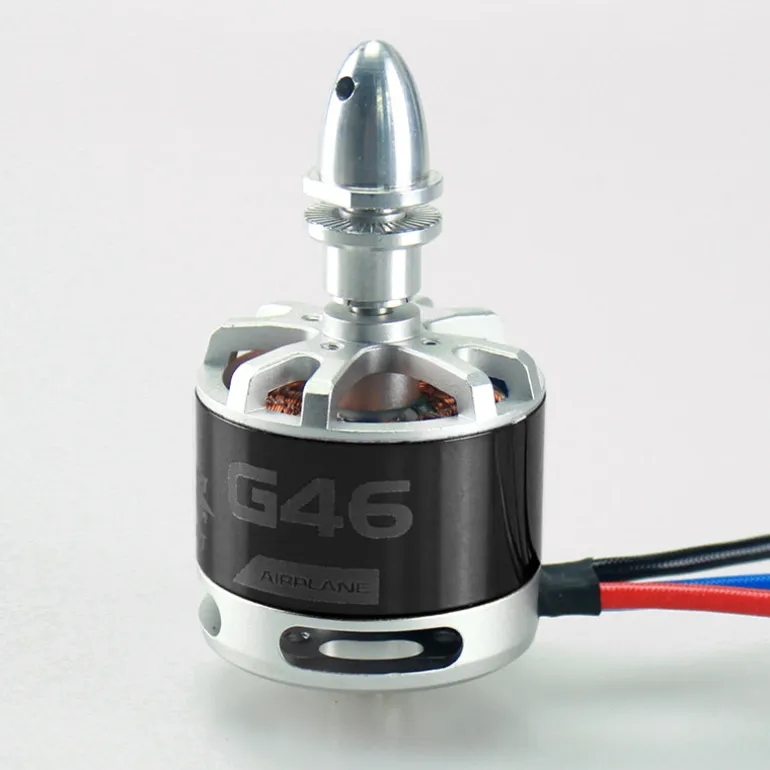

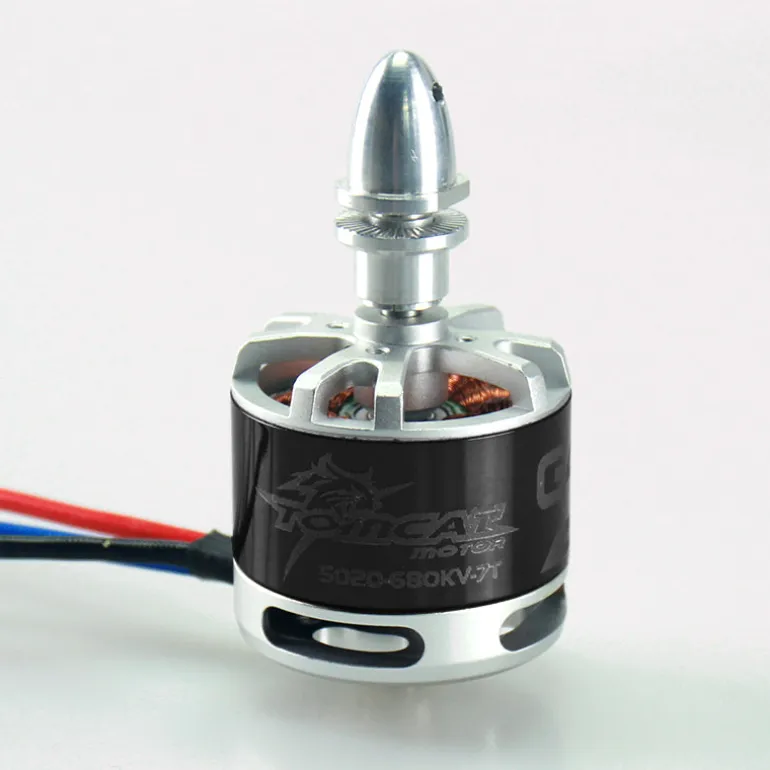

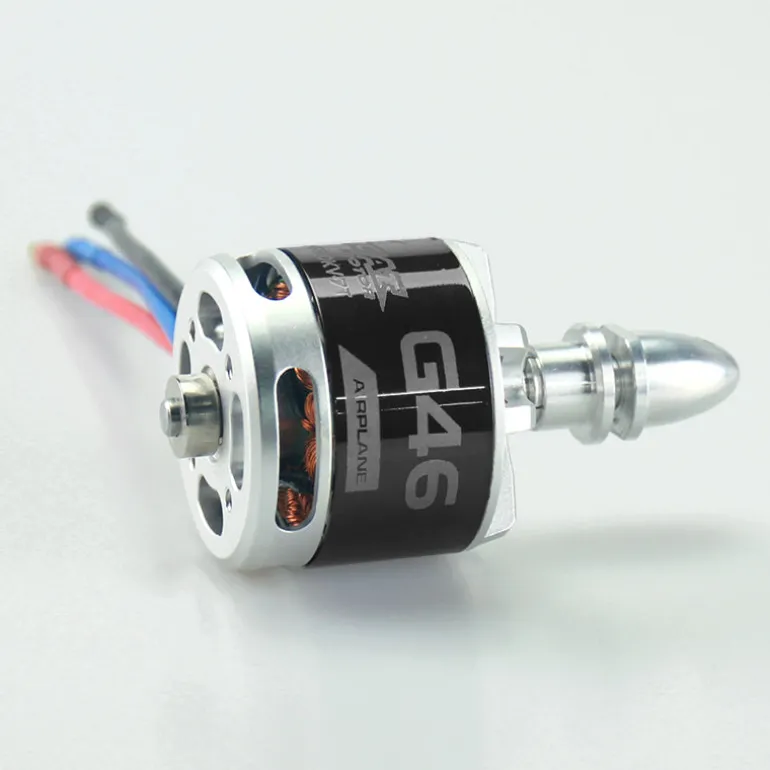

The TomCat G46 5020-680KV Outrunner Brushless Motor is an efficient and powerful replacement for a 46 glow engine. Ideal for new RC builds, it runs on 4-5 cell LiPo batteries and pairs with a 50-60 Amp ESC. Rated at 900 Watts max, it has a suggested amp draw of 42 Amps (58 Amps burst).

This power combo set includes:

• Skylord 50A ESC (with 5V/5A BEC) x1
• TomCat Brushless Motor G46 x1

TomCat G Series Balsa EP Planes Brushless Motor Features:

• High-Strength Aluminum Alloy Casing: Enhances impact resistance.
• Wear-Proof Bearing: Ensures smooth, high-speed rotation and longevity.
• Heat-Resistant Magnet Wire: 240° resistant, vacuum impregnated for better heat conduction and longer service life.
• High Conductivity Silicon Steel: Made in Japan, boosts motor efficiency.
• N45H Magnets: High torque output, resistant to demagnetization at high temperatures.
• Optimized Heat Dissipation: Innovative design for efficient cooling and consistent performance.
• Dynamic Balancing: Reduces vibration and noise, ensures stable high-speed operation.
• Versatile Accessories: Includes 75cm extension cord and 10cm assembled wire for flexible connections.
• Enhanced Compatibility: Pairs excellently with Skylord series ESC, offering outstanding performance in Balsa EP airplanes.

TomCat G46 Motor Specifications:

• Type: TC-G-5020-KV680 (G46)

• KV(rpms per volt): 680

• No load current: 2.8 A @10V

• Resistance: 0.037 ohms

• Watts: up to 900

• Continuous Current: 42A

• Max Burst Current: 58A,10seconds

• Cells: 4–5 S Li-Po (G46 5020-680KV 4-5 Cell Lipo)

• Recommended Props: 12×8 to 14×10

• Slots,Poles: 12,14

• Motor Outer Dia: 50 mm

• Shaft Dia: 6.0 mm

• Weight: 10.9 oz (310g)

• Brushless ESC: 50A-60A

Skylord Electronic Speed Controller (ESC) Features:

• The ESC’s microprocessor is powered by a separate voltage regulator IC for enhanced anti-jamming, reducing the risk of loss of control.
• Throttle range is configurable, compatible with most transmitters, providing smooth, accurate speed control and excellent throttle linearity.
• Maximum motor speeds: 210,000 RPM (2 poles), 70,000 RPM (6 poles), 35,000 RPM (12 poles).
• Three start modes: Normal (fixed-wing), Soft, and Super-soft (helicopters).
• Comprehensive protection features: low voltage, over-heat, over-load, and throttle signal loss, extending ESC lifespan.
• Selectable timing supports both aircraft and disc-type motors.
• Multiple programmable options to suit various needs.
• Optional 3-in-1 programming card offers an intuitive, compact interface for easy ESC programming.
